Chiller laser cutting 3000W
คุณสมบัติสินค้า:
SKU : Chiller laser cutting 3000W
หมวดหมู่ : อุปกรณ์เครื่อง Fiber laser , FIBER LASER ,
Share

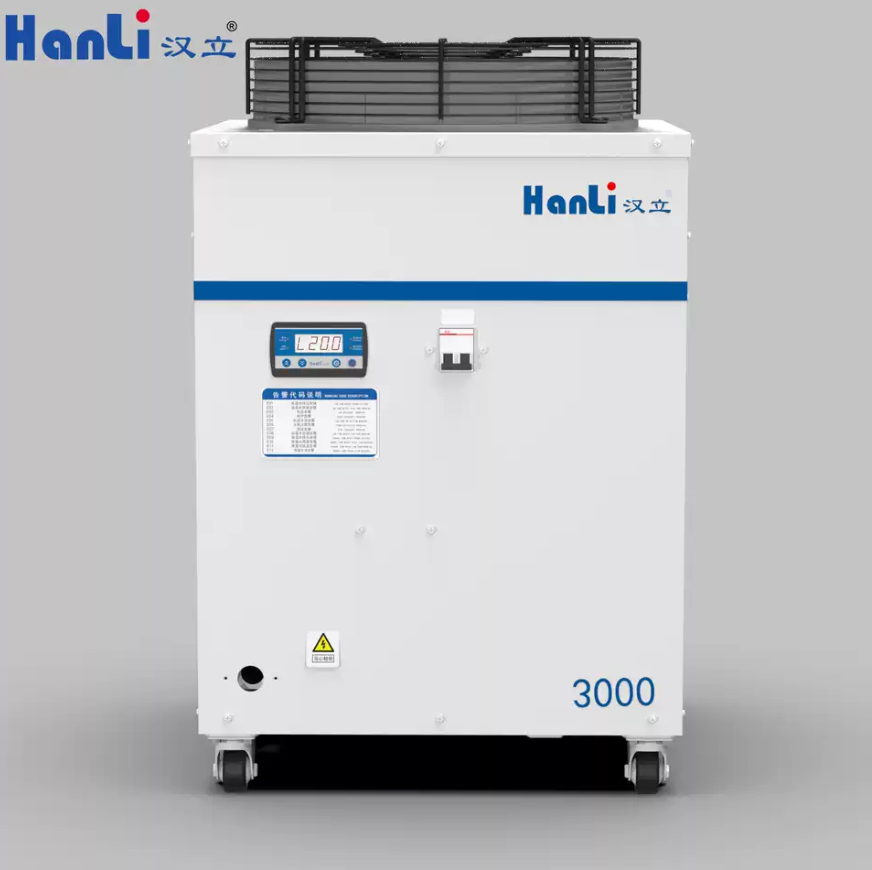

Water chiller laser cutting 3000W
Model : HL-3000-QG2/2
Voltage & Frequency 1p 220V @50hz
Current 13.5A
Machine Power 3.8kw
Application Environment temperature: 5~40℃;Relative humidity: ≤90%
Tempe. Control Accuracy ±1℃
Electric Heating Power 800w+800w
Refrigerant R32
Rated Flow (Low Temperature End) ≥33 L/min
Rated Flow (High Temperature End) 1.2-1.5 L/min
Pump Power 0.55kW
Tank Volume 21L
Laser Water Nozzle Interface G3/4*Ø20mm Pagoda hose connector
Cutting Head Water Nozzle Interface G1/2*Ø10mm Quick connector
Machine Weight 66KG
Machine Size 520×640×815mm(L*W*H)
